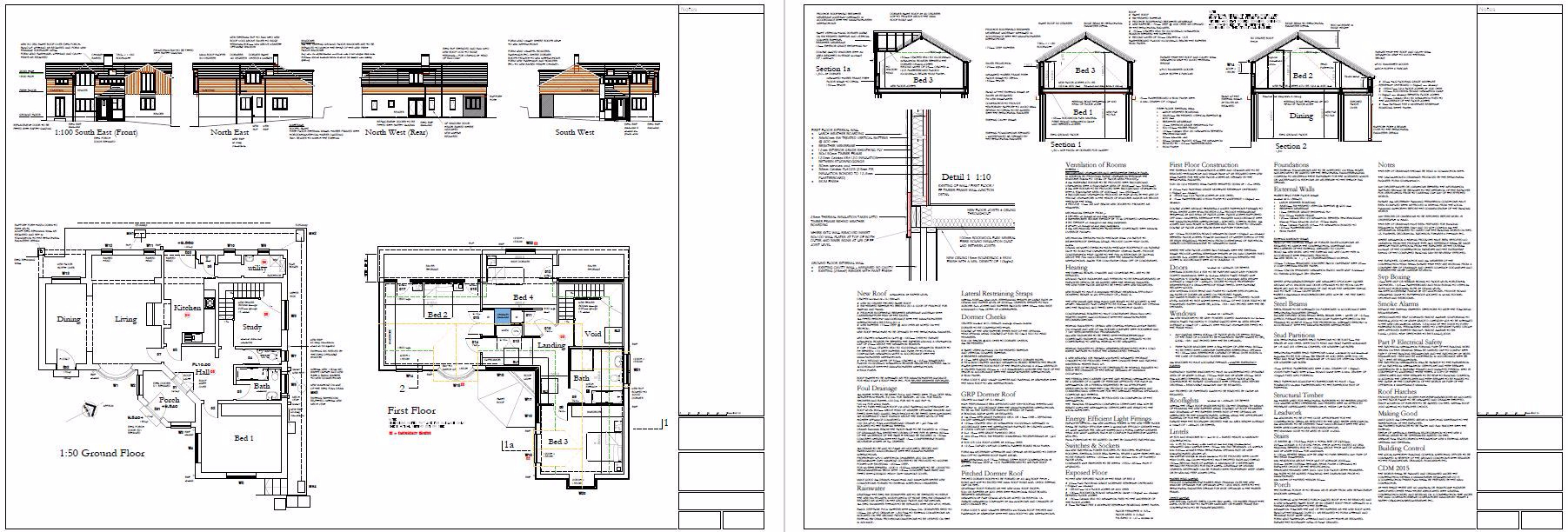

A very busy period work wise, lots of Building Regulation drawings to get through one after another. Here is a set of drawings produced for an Architect I freelance for. It is for a chalet bungalow with magnificent sea views. The existing first floor rooms were very small and in this proposal we are removing the existing roof and forming a new timber frame first floor with dormers that take advantage of the views available without making the new roof lines too tall. I think it is a very nice scheme.

click on the image to see more

Although you will not be able to see much detail on this image it indicates the level of information necessary to gain Building Regulations.
